Wideband RF Power Over Ethernet Transformer , Pcb Mount Transformer RFT-085SG

Brand Name : Shareway

Model Number : RFT-085SG

Certification : RoHS,ISO9001-2001

Place of Origin : Guangdong,shenzhen

MOQ : 500/1000

Price : Supportive

Payment Terms : TT,Paypal,West Union

Supply Ability : 1kk-pcs/month

Delivery Time : Stock Or 3 weeks

Packaging Details : Reel/Tray

Product name : 1:1:1 Small Signal Transformer Wideband RF Transformers RFT-085SG

Transformer : Signal Transformer

Turns ratio : 1:1:1

Usage : Current

Coil Structure : Toroidal

Contact Now

1:1:1 Small Signal Transformer Wideband RF Transformers RFT-085SG

Description:

  • Various impedance ratios available
  • Excellent insertion loss
  • Products from 0.05 to 3000 MHz bandwidth
  • Miniature surface mount package
  • Ideal for Balanced-to-Unbalanced applications

Electrical Specifications @25°C-Operating Temperature -40°C to+85°C

Part
Number		 System
Impedance		 Impedance Ratio
Pri:Sec

Bandwidth(MHz Max)

3dB

Bandwidth(MHz Max)

2dB

Bandwidth(MHz Max)

1dB
RFT-085SG 100 1:1:1 70-680(6dB) 70-680(6dB) 70-680(6dB)
RFT-094SG 50 1:8 --- 5-85 ---
RFT-095SG 75 4:1 150-200 50-150 5-50
RFT-124SG 75 1:1 2000-3000 1000-2000 4.5-1000
RFT-128SG 50&75 1.25:1 --- --- 1-100
RFT-129SG 50&75 1:2.25 --- --- 5-204
RFT-131SG 50 4:1 1.5-600 2-400 3-350

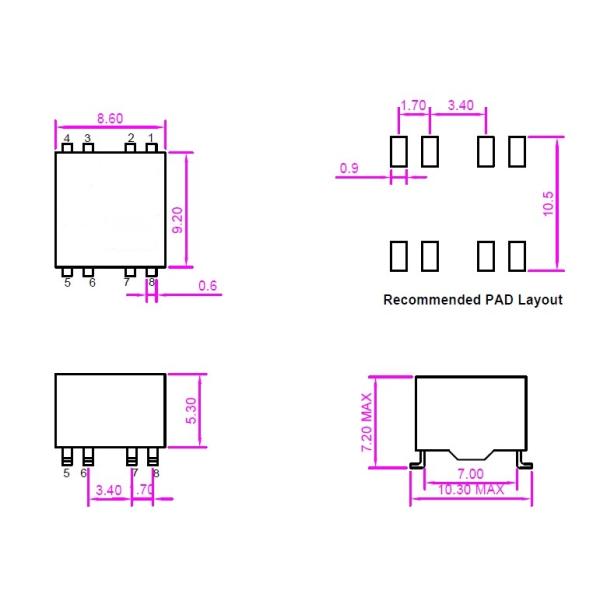

Dimensions:

Wideband RF Power Over Ethernet Transformer , Pcb Mount Transformer RFT-085SG
