High energy SMD Power Inductore DO3316P-102ML_ for EL driver applications

Brand Name : Shareway

Model Number : DO3316P-102ML_

Certification : CE UL RoHS ISO9001:2008

Place of Origin : Guangdong China

MOQ : 100/500/1000

Price : Supportive

Payment Terms : TT,Paypal

Supply Ability : 5000K.PCS/Month

Delivery Time : Stock or 3 weeks

Packaging Details : 1000pcs/reel

Product name : High energy storage and low resistance DO3316P-102ML_ for EL driver applications

Core material : Ferrite

Weight : 0.92 – 1.23 g

Type : Power Inductors

Application : EL driver applications

Feature : High energy storage and low resistance

Contact Now

High energy storage and low resistance DO3316P-102ML_ for EL driver applications

Description:

• High energy storage and very low resistance
• High inductance values are perfect for EL driver applications.

Weight 0.92 – 1.23 g
Ambient temperature –40°C to +85°C with Irms current
Maximum part temperature +125°C (ambient + temp rise) Derating.
Storage temperature Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL) 1 (unlimited floor life at <30°C /
85% relative humidity)
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332
Packaging 1000 per 13″ reel Plastic tape: 24 mm wide,
0.33 mm thick, 12 mm pocket spacing, 5.8 mm pocket depth

Part

number

L

(μH)

Percent

tol

DCR

max

(Ohms)

SRF

typ

(MHz)

Isat

(A)

Irms

(A)
DO3316P-102ML_ 1.0 20 0.009 100 9.0 6.8
DO3316P-152ML 1.5 20 0.010 90 8.0 6.4
DO3316P-222_L_ 2.2 20,10 0.012 80 7.0 6.1
DO3316P-332_L_ 3.3 20,10 0.015 65 6.4 5.4
DO3316P-472_L_ 4.7 20,10 0.018 45 5.4 4.8
DO3316P-682_L_ 6.8 20,10 0.027 38 4.6 4.4
DO3316P-103_L_ 10 20,10 0.038 30 3.8 3.9
DO3316P-153_L_ 15 20,10 0.046 27 3.0 3.1
DO3316P-223_L_ 22 20,10 0.085 19 2.3 2.7
DO3316P-333_L_ 33 20,10 0.10 15 2.0 2.1
DO3316P-473_L_ 47 20,10 0.14 12 1.6 1.8
DO3316P-683_L_ 68 20,10 0.20 10 1.4 1.5
DO3316P-104_L_ 100 20,10 0.28 9 1.2 1.3
DO3316P-154_L_ 150 20,10 0.40 6 1.0 1.0
DO3316P-224_L_ 220 20,10 0.61 5 0.80 0.80
DO3316P-334_L_ 330 20,10 1.02 4.5 0.60 0.60
DO3316P-474_L_ 470 20,10 1.27 3.5 0.50 0.50
DO3316P-684_L_ 680 20,10 2.02 2.5 0.40 0.40
DO3316P-105_L_ 1000 20,10 3.00 2.0 0.30 0.30
DO3316P-155_L_ 1500 20,10 4.49 1.7 0.29 0.27
DO3316P-335_L_ 3300 20,10 8.97 1.1 0.19 0.17

High energy storage and low resistance DO3316P-102ML_ for EL driver applications

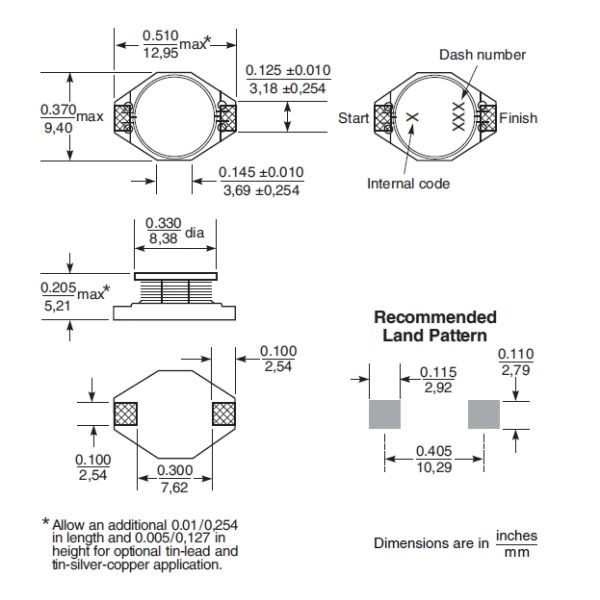

Shape and Dimensions:

High energy SMD Power Inductore DO3316P-102ML_ for EL driver applications
