SER2915L-152KL Power Inductor for greater stability and board adhesion

Brand Name : Shareway

Model Number : SER2915L-152KL

Certification : CE UL RoHS ISO9001:2008

Place of Origin : Guangdong China

MOQ : 100/500/1000

Price : Supportive

Payment Terms : TT,Paypal

Supply Ability : 3000K.PCS/Month

Delivery Time : Stock or 3 weeks

Packaging Details : 200-750pcs/reel

Product name : SER2915L-152KL Power Inductor for greater stability and board adhesion

Type : Shielded Power Inductors

Application : greater stability and board adhesion

Core material : Ferrite

Terminations : tin-silver over copper Base pad

Feature : Flat wire windings Inductor

Contact Now

SER2915L-152KL Power Inductor for greater stability and board adhesion

Description:

• Same electrical specifications as Coilcraft’s SER2800
• Extremely low DCR; Current handling to >100 Amps
• Third mounting pad for greater stability and board adhesion

Core material Ferrite

Terminations Leads: RoHS compliant tin-silver over copper
Base pad: RoHS compliant gold over nickel over phos bronze
Other terminations available at additional cost.
Weight SER2915L – 28.5 g; SER2915H – 29.7 g; SER2918H – 35.7 g
Ambient temperature –40°C to +85°C with (40°C rise) Irms current.
Maximum part temperature +125°C (ambient + temp rise). Derating.
Storage temperature Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL) 1 (unlimited floor life at <30°C /
85% relative humidity)

Part number

Inductance

±10% (μH)

 DCR (mOhms)

SRF typ

(MHz)

 Isat (A) Irms (A)
nom max 10% drop 20% drop 30% drop 20°C rise 40°C rise
SER2915L-152KL 1.5 1.50 1.65 60 100 >100 >100 20 30
SER2915H-222KL 2.2 1.86 2.05 40 100 >100 >100 20 30
SER2915L-222KL 2.2 1.50 1.65 50 82.0 84.0 84.8 20 30
SER2918H-332KL 3.3 2.60 2.86 40 91.0 92.5 93.6 20 28
SER2915H-332KL 3.3 1.86 2.05 30 62.0 66.9 68.4 20 30
SER2915L-332KL 3.3 1.50 1.65 40 48.0 54.0 57.0 20 30
SER2918H-472KL 4.7 2.60 2.86 30 59.0 61.2 62.4 20 28
SER2915H-472KL 4.7 1.86 2.05 25 42.0 48.0 50.1 20 30
SER2915L-472KL 4.7 1.50 1.65 30 33.0 36.9 39.0 20 30
SER2918H-682KL 6.8 2.60 2.86 25 42.0 45.0 45.9 20 28
SER2915H-682KL 6.8 1.86 2.05 20 30.0 34.5 36.2 20 30
SER2915L-682KL 6.8 1.50 1.65 25 22.0 26.0 27.8 20 30
SER2918H-103KL 10 2.60 2.86 20 28.0 31.2 32.1 20 28
SER2915H-103KL 10 1.86 2.05 15 18.0 21.5 23.4 20 30
SER2915L-103KL 10 1.50 1.65 20 13.0 16.2 17.6 20 30
SER2918H-153KL 15 2.60 2.86 16 18.0 21.2 21.9 20 28
SER2915H-153KL 15 1.86 2.05 12 11.5 14.0 15.2 20 30
SER2915L-153KL 15 1.50 1.65 15 7.5 9.8 11.0 20 30
SER2918H-223KL 22 2.60 2.86 15 12.0 14.0 15.0 20 28
SER2915H-223KL 22 1.86 2.05 10 7.0 8.6 9.6 20 30
SER2915L-223KL 22 1.50 1.65 10 4.5 6.0 6.8 20 30
SER2918H-333KL 33 2.60 2.86 10 7.0 8.7 9.6 20 28
SER2915H-333KL 33 1.86 2.05 8 4.0 5.1 5.9 20 30
SER2915L-333KL 33 1.50 1.65 7 2.0 2.6 3.3 20 30

SER2915L-152KL Power Inductor for greater stability and board adhesion

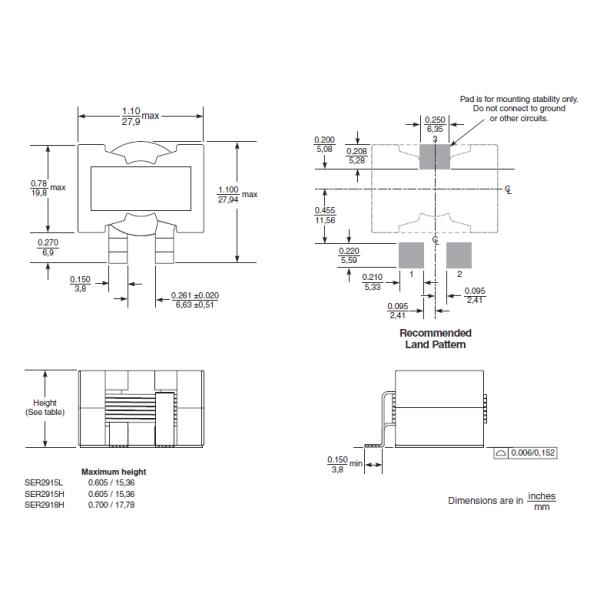

Shape and Dimensions:

SER2915L-152KL Power Inductor for greater stability and board adhesion
