Low DCR MSS1583-103ME_ 14.8*14.8*8.6 mm Shielded Power Inductors

Brand Name : Shareway

Model Number : MSS1583-103ME_

Certification : CE UL RoHS ISO9001:2008

Place of Origin : Guangdong China

MOQ : 100/500/1000

Price : Supportive

Payment Terms : TT,Paypal,

Supply Ability : 5000K.PCS/Month

Delivery Time : Stock or 3 weeks

Packaging Details : 300PCS/REEL

Product name : Low DCR MSS1583-103ME_ 14.8*14.8*8.6 mm Shielded Power Inductors

Material : Alloy powder

Inductance : 10 ±20% uH

Rated Current : 7.4A

Dimensions : 14.8*14.8*8.6 mm

Sample : Free samples available

Contact Now

Low DCR MSS1583-103ME_ 14.8*14.8*8.6 mm Shielded Power Inductors

Description:

• 14.8 × 14.8 mm footprint; 8.6 mm high shielded inductors
• 16 inductance values from 10 μH to 1 mH
• Low DCR and excellent current handling

Core material Ferrite

Environment RoHS compliant, halogen free
Terminations RoHS compliant matte tin over nickel over phos bronze.
Other terminations available at additional cost.
Weight: 3.7 – 4.4 g
Ambient temperature –40°C to +85°C with (40°C rise) Irms current.
Maximum part temperature +125°C (ambient + temp rise). Derating.
Storage temperature Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL) 1 (unlimited floor life at <30°C /
85% relative humidity)
Failures in Time (FIT) /

Part number

Inductance

(μH)

DCR

(mOhms)

SRF

typ

(MHz)

 Isat (A) Irms (A)6
typ max

10%

drop

20%

drop

30%

drop

20°C

rise

40°C

rise
MSS1583-103ME_ 10 ±20% 0.012 0.014 17.0 12.0 13.6 14.7 5.0 7.4
MSS1583-123ME_ 12 ±20% 0.014 0.017 14.5 11.7 13.3 14.2 4.4 6.3
MSS1583-153ME_ 15 ±20% 0.018 0.021 13.5 10.1 11.5 12.4 4.3 6.1
MSS1583-183ME_ 18 ±20% 0.020 0.023 12.0 9.2 10.5 11.2 3.9 5.5
MSS1583-223ME_ 22 ±20% 0.023 0.026 10.5 8.2 9.1 10.4 3.7 5.3
MSS1583-333ME_ 33 ±20% 0.033 0.038 8.5 7.0 7.9 8.6 3.4 4.8
MSS1583-473ME_ 47 ±20% 0.048 0.055 7.3 5.9 6.7 7.3 2.7 3.7
MSS1583-683ME_ 68 ±20% 0.061 0.070 6.0 4.7 5.5 6.0 2.5 3.4
MSS1583-104KE_ 100 ±10% 0.090 0.103 4.8 3.9 4.4 4.8 1.55 2.8
MSS1583-154KE_ 150 ±10% 0.138 0.159 3.7 3.1 3.6 3.9 1.55 2.20
MSS1583-224KE_ 220 ±10% 0.205 0.235 3.0 2.6 3.0 3.3 1.30 1.80
MSS1583-334KE_ 330 ±10% 0.300 0.345 2.7 2.0 2.3 2.5 1.00 1.45
MSS1583-474KE_ 470 ±10% 0.386 0.445 2.2 1.8 2.0 2.2 0.96 1.35
MSS1583-684KE_ 680 ±10% 0.570 0.655 1.8 1.4 1.6 1.8 0.78 1.10
MSS1583-824KE_ 820 ±10% 0.640 0.736 1.6 1.3 1.5 1.6 0.74 1.0
MSS1583-105KE_ 1000 ±10% 0.860 0.990 1.5 1.1 1.3 1.4 0.63 0.86

Low DCR MSS1583-103ME_ 14.8*14.8*8.6 mm Shielded Power Inductors

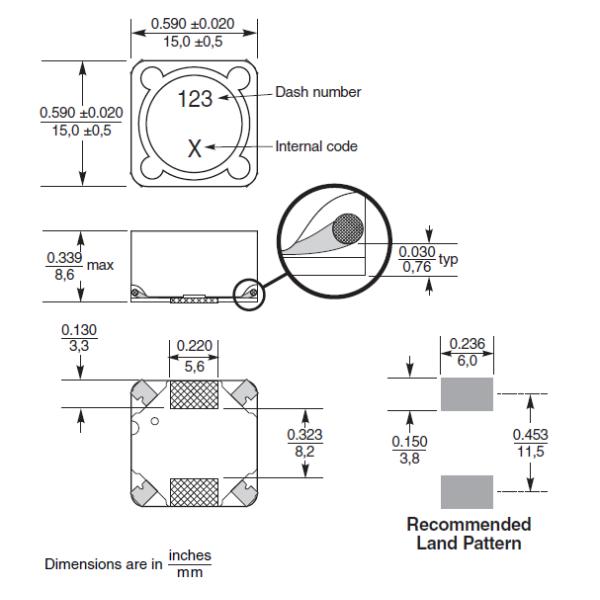

Shape and Dimensions:

Low DCR MSS1583-103ME_ 14.8*14.8*8.6 mm Shielded Power Inductors
