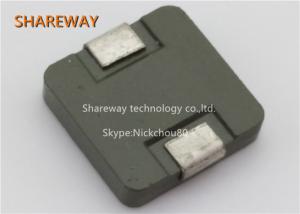

7.2 * 7.2 * 1.5mm SMD Power Inductor For EMI Sensitive Applications 29L102C

Name: 72 72 15mm SMD Power Inductor For EMI Sensitive Applications 29L102C
Brand: Shareway
Price: 1 USD

Wholesale 7.2 * 7.2 * 1.5mm SMD Power Inductor For EMI Sensitive Applications 29L102C from china suppliers

Brand Name : Shareway

Model Number : 29L102C

Certification : RoHS,CE,UL

Place of Origin : Guangdong,shenzhen

MOQ : 500/1000

Price : Supportive

Payment Terms : TT,Paypal,West Union

Supply Ability : 1kk-pcs/month

Delivery Time : Stock Or 3 weeks

Packaging Details : Reel/Tray

Product name : Inductance range from 1.0μH to 1.0mH SMD Power Inductor 29L102C

Type : bobbin-wound

Shield : shielded inductors

Size : 7.2*7.2*1.5mm

EMI : EMI sensitive applications.

Inductance : 1.0μH to 1.0mH

Contact Now

29102C Low profile bobbin-wound shielded inductors for computers

Description:

The 2900L series is a lower profile version of our
2900 series range of bobbin-wound, shielded
inductors. They are suitable for power-line filtering
found in consumer electronics such as desktop
computers, handheld devices and GPS systems,
as well as in a vast range of industrial and telecom
applications including network hubs, bridges &
routers, and high frequency wireless communication
devices.
These surface mount inductors are extremely
compact and have an integral shield, making them
useful in EMI sensitive applications.

	Inductance (10kHz, 0.1VAC)	Inductance (10kHz, 0.1VAC)	Idc2	Rdc
	Nom.	Min. – Max.	Max.	Max.
Part No.	μH	μH	A	mΩ
29L102C	1.0	0.70 – 1.30	4.6	13
29L152C	1.5	1.02 – 1.88	4.2	15
29L222C	2.2	1.76 – 3.26	3.0	20
29L332C	3.3	2.26 – 4.20	2.6	25
29L472C	4.7	3.31 – 6.15	2.2	31
29L682C	6.8	4.75 – 8.83	1.8	48
29L103C	10	8.4 – 12.6	1.55	64
29L153C	15	11.8 – 17.7	1.23	84
29L223C	22	17.1 – 25.7	1.05	114
29L333C	33	25.7 – 38.6	820mA	174
29L473C	47	36.7 – 55.0	800mA	250
29L683C	68	54.7 – 82.1	530mA	307
29L104C	100	79.0 – 119	480mA	550
29L154C	150	121 – 181	430mA	850
29L224C	220	178 – 266	360mA	1060
29L334C	330	267 – 403	300mA	1670
29L474C	470	380 – 570	220mA	2900
29L684C	680	560 – 840	200mA	3610
29L105C	1000	816 – 1224	140mA	6480

Dimensions:
