Compact Size SMD Power Inductor , Low Profile Power Inductor 18.5 * 15.2 * 7.6mm

Name: Compact Size SMD Power Inductor Low Profile Power Inductor 185 152 76mm
Brand: Shareway
Price: 1 USD

Brand Name : Shareway

Model Number : 28102C

Certification : RoHS,CE,UL

Place of Origin : Guangdong,shenzhen

MOQ : 500/1000

Price : Supportive

Payment Terms : TT,Paypal,West Union

Supply Ability : 1kk-pcs/month

Delivery Time : Stock Or 3 weeks

Packaging Details : Reel/Tray

Product name : Compact size low profile SMD Power Inductor 28102C for switching power supply

Inductance range : 1.0μH to 3.3mH

Application : power line filter circuits

Type : Bobbin Wound Surface Mount Inductors

Pin finish : Tin

Size : 18.5*15.2*7.6mm

Contact Now

Compact size low profile SMD Power Inductor 28102C for switching power supply

Description:

	Inductance (10kHz, 100mVAC)	Inductance Range (10kHz, 100mVAC)	DC Current2	DC Resistance	Q@f MHz	Q@f MHz	SRF
	Nom.	Min.-Max.	Max.	Max.	Nom.	Nom.	Typical
Part No.	μH	μH	A	mΩ	Q	F	MHz
28102C	1.0	0.68 - 1.02	15.5	2.6	45.6	1.0	104
28152C	1.5	1.12 - 1.68	12.5	3.6	43.9	1.0	72
28222C	2.2	1.56 - 2.34	11.2	4.4	36.9	1.0	58
28332C	3.3	2.84 - 4.26	9.3	7.5	34.6	1.0	42
28472C	4.7	3.68 - 5.52	8.3	10	33.3	1.0	37
28682C	6.8	5.52 - 8.28	6.8	14	31.2	1.0	29
28103C	10	7.84 - 11.76	5.9	18	31.1	1.0	22.5
28153C	15	12.0 - 18.0	4.77	28	31.0	1.0	17.8
28223C	22	17.7 - 26.5	3.85	42	43.5	1.0	14.4
28333C	33	26.2 - 39.4	3.22	63	42.8	1.0	11.8
28473C	47	39.0 - 58.4	2.66	86	31.5	1.0	10.4
28683C	68	55.4 - 83.0	2.16	122	33.9	1.0	8.6
28104C	100	80.8 - 121.2	1.40	174	21.4	0.8	7.7
28154C	150	121 - 181	1.40	276	20.9	0.8	6.7
28224C	220	178 - 266	1.20	381	18.0	0.8	5.8
28334C	330	266 - 398	0.95	575	30.8	0.8	5.0
28474C	470	383 - 575	0.78	816	31.7	0.8	4.3
28684C	680	548 - 822	0.64	1170	20.4	0.8	4.2
28105C	1000	940 - 1150	0.51	1820	21.0	0.8	3.8
28155C	1500	1390 - 1700	0.41	2620	19.8	0.8	3.4
28225C	2200	1960 - 2400	0.35	3720	15.8	0.8	3.3
28335C	3300	3030 - 3700	0.29	5760	12.8	0.8	3.2

Features

-The Miniature chip inductors is wound on a special ferrite core.

-VLH322515/322520/453226 are low DC resistance.

-VLH322520C/453226C/565047C are low DC resistance, high current capacity, and high impedance characteristics. They are excellent for using as a choke coil in DC power supply circuits.

Applications

-Pagers, Cordless Phone

-High Frequency Communication Products

-Personal Computers

-Disk Drives And Computer Peripherals

-DC Power Supply Circuits

Chatacteristics

-Rated DC Current(I sat): The current when the inductance becomes 30% typical its initial value(Ta=25 ℃ )

-Temperature Rise Current(I rms): The actual current when the temperature of coil becomes T40 ℃.. (Ta=25 ℃ )
-Operating temperature range: -40 ~ 125 ℃

Dimensions:

Product Tags:

wire wound chip inductors

high current power inductors

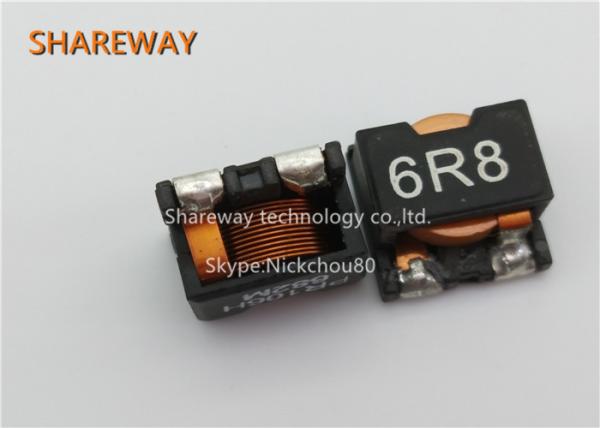

Compact Size SMD Power Inductor , Low Profile Power Inductor 18.5 * 15.2 * 7.6mm Images
